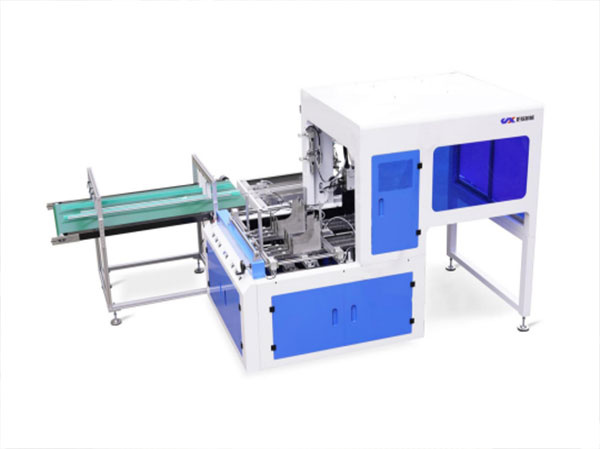

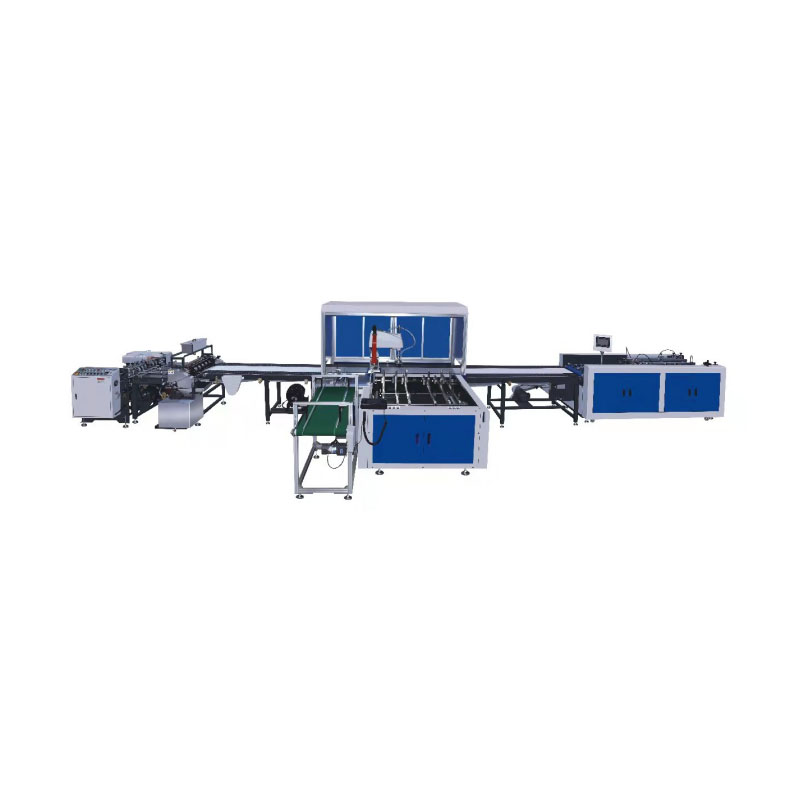

NEW STAR Rigid Box Visual Position Machine consists of an automatic paper feeding and gluing machine, a suction conveyor belt, an automatic gray board feeder, an automatic box sorting and conveying mechanism, and a visual manipulator positioning system. When producing boxes, you can choose to position two boxes or one box at the same time according to production needs, effectively improving production efficiency. One-click switching gray board positioning mode can reduce the cost of repeated machinery purchases and improve site utilization.
| Model | JX-DW850 |
| Max.top paper size | 1000×1000mm |
| Min.top paper size | 80×165mm |
| Rigid box double position max.size |
420x200x120mm (L×W×H) 415x195x120mm(L×W×H) |
| Rigid box double position min. Size | 80x50x12mm(L×W×H) |
| Rigid box single position max.size | 500x400x120mm(L×W×H) |
| Rigid box single position min. Size | 50x50x12mm(L×W×H) |
| Cardboard max.size | 460x960mm(W×L) |
| Cardboard min.size | 20x30mm(W×L) |
| Cardboard thickness | 1mm-4mm |
| Robotic arm | 700/600 stroke, load 10kgs |
| Positioning accuracy | 0.2mm-0.3mm |
| Speed | 1-20pcs/min |
| Air pressure | 0.6-0.8MPa |
| Supply voltage | AC220V/1 phases/5OHz |
| Machine dimension | 1500x1900x1650mm |
| Machine weight | 1000KG |
Rigid Box Visual Position Machine is widely used as the best choice for various boxes with lids, such as mobile phone boxes, shoe boxes, moon cake boxes, jewelry boxes, shirt boxes, etc.
1.Dual positioning system, one-button switch between box and gray board positioning, simple and convenient operation;
2.Visual inspection and robot positioning are more accurate;
3.High-definition wide-angle camera, no need to adjust the camera position when changing models;
4.One machine with multiple uses effectively controls production costs, and the finished product has more competitive advantages;
5.Intelligent fault detection system for equipment, faster and more effective troubleshooting, instant reset, saving time and effort.
Fully automatic visual positioning On the production line, through the machine visual positioning system, the machine can automatically identify and grab the parts to be processed, avoiding the errors and inefficiencies in traditional manual operations. At the same time, the system can monitor each link in the production process in real time to ensure the efficient operation of the production process. This not only improves production efficiency, but also reduces production costs, bringing considerable economic benefits to the company. At the same time, the visual positioning system can also be transplanted on existing or old mobile conveyor belts, which is flexible.
a.The robot arm is highly flexible and can adapt to various complex task requirements. The robot arm adopts advanced servo motors and motion control systems, which can achieve high-speed and high-precision motion control, and quickly and accurately complete a series of actions such as grabbing, handling and stacking.
b.The robot arm is equipped with a variety of sensors and advanced visual recognition technology, which can achieve accurate perception and positioning, quickly identify objects of different shapes, sizes and colors, and automatically classify and stack.
c.The product adopts intelligent PLC touch screen control. Users can monitor and adjust the robot in real time through the intelligent control panel or remote control system. The operation is simple and convenient.
d.The robot arm has high safety and is equipped with various safety devices and sensors to achieve safe operation and reduce the safety risks of staff.
e.It has a high degree of automation and can be integrated with various automation equipment and systems to realize the components of the automated production line, improve production efficiency and reduce labor costs.

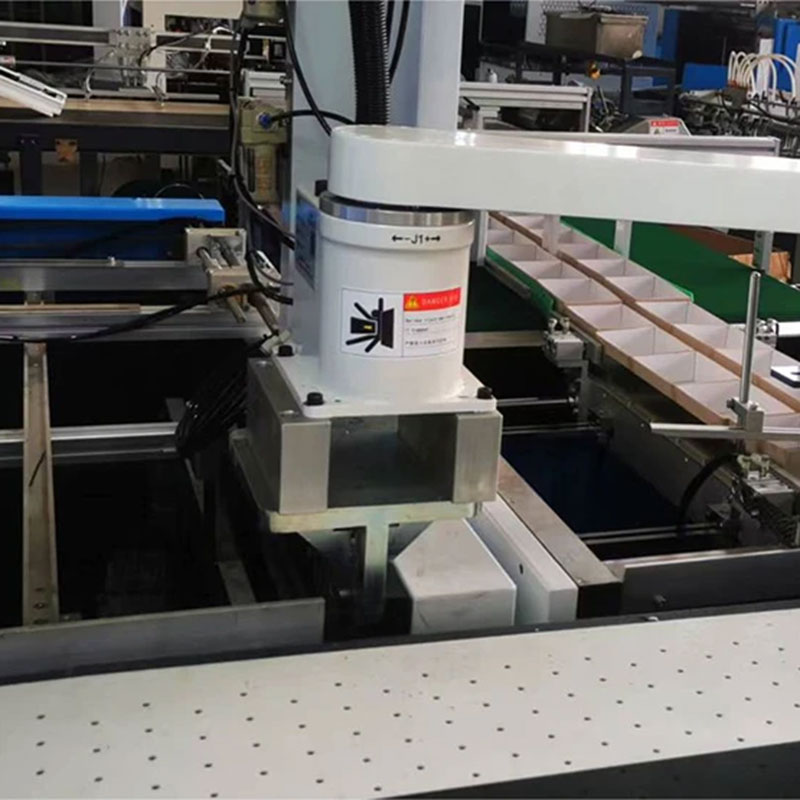

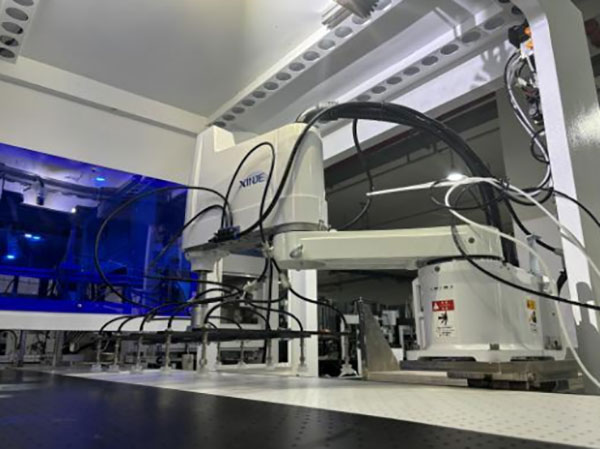

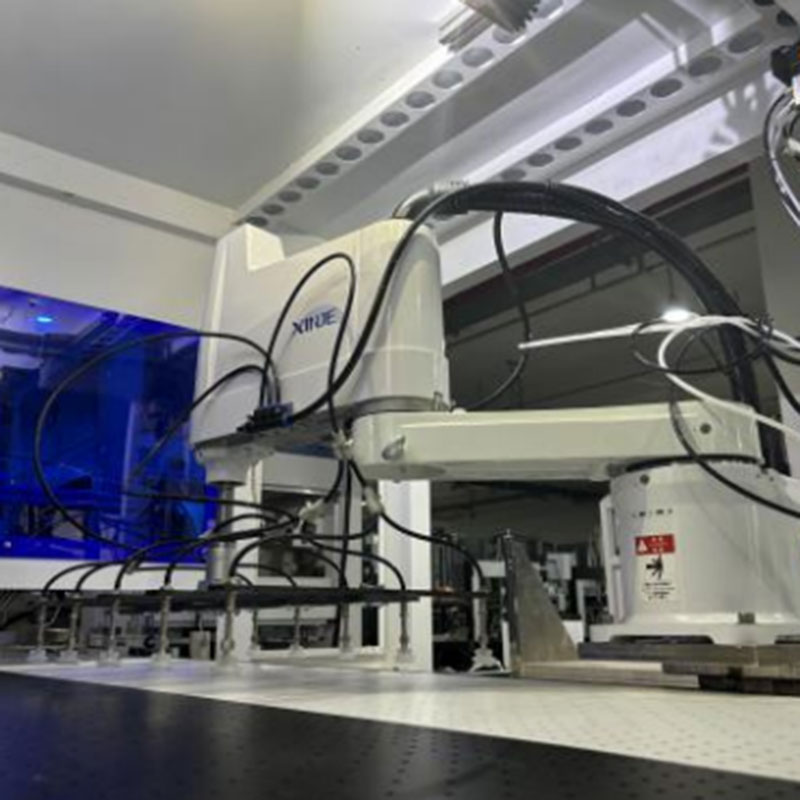

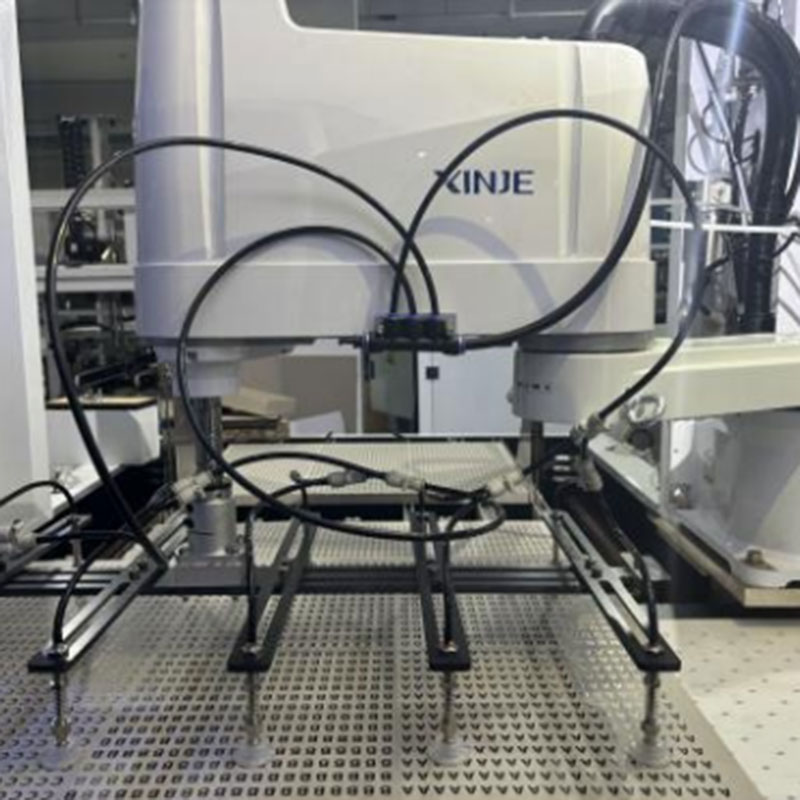

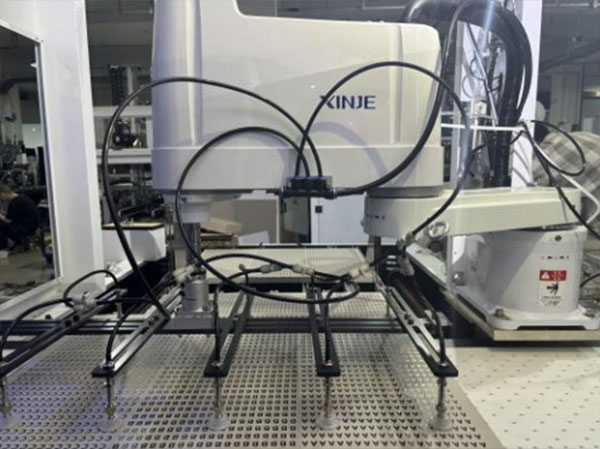

Robotic arm

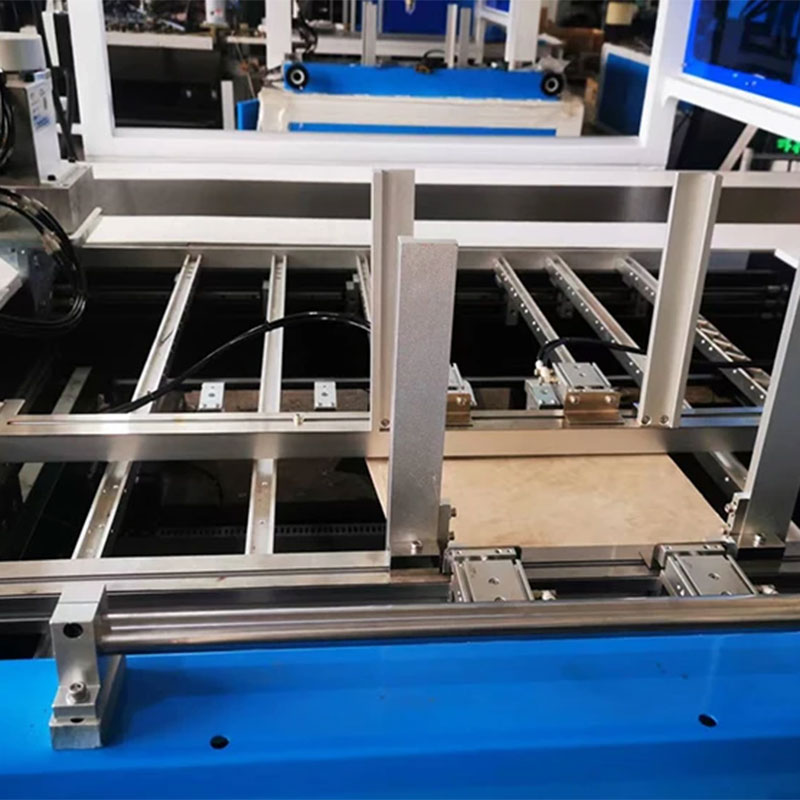

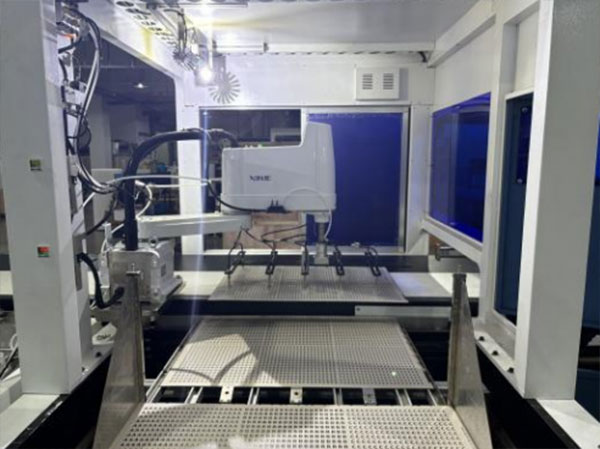

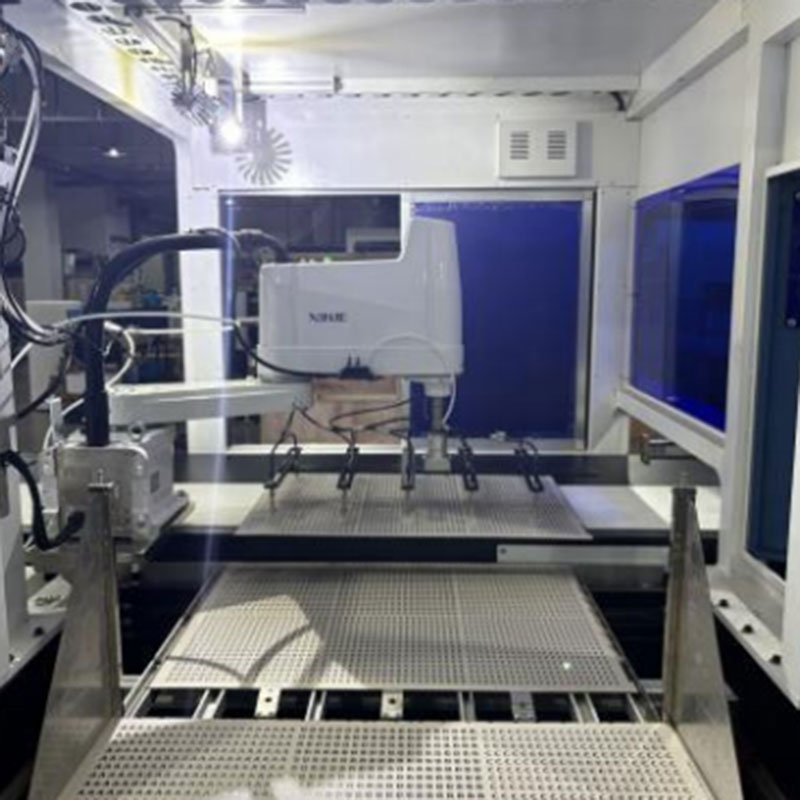

Visual system
